Detachable LoRa remote water meter

Features

This water meter uses a number of proprietary intellectual property rights such as the patented technology of “Disassemblable Intelligent Remote Water Meter” and “Anti-freezing Patent Technology” of the company. The base watch is a wet ordinary water meter, and the LoRa intelligent remote transmission module is added on the top to form a smart remote water meter. The technology is stable and reliable, and it is easy to disassemble and maintain. It is suitable for the renovation of old watches of one household and one meter, as well as the installation of households and the metering and charging of new buildings. The after-sales management is very convenient and humanized. It is the preferred IoT water meter for the water resources management department.

一、Technical characteristics:

The base table complies with the national standard GB/T778-2007 "Drinking cold water meter and hot water meter"

  • All technical indicators are in line with CJ/T 224-2006 "Electronic Remote Water Meter" standard

  • The patent name "a detachable intelligent remote water meter" facilitates metering, charging and maintenance replacement of the water fee management department.

  • Low installation requirements: the use of ordinary wet mechanical water meters, size standards, easy to install;

  • Convenient maintenance: The detachable design is adopted, and the “LoRa remote transmission module” is fixed on the base table. The base table and the remote transmission module are easy to disassemble and install, and the maintenance is convenient;

  • Double battery backup: The remote module is equipped with 1 high-performance battery and 1 spare battery to ensure the normal working time of the water meter is ≥6 years;

  • High measurement accuracy: using a wet base meter, the initial flow rate is small, and the anti-drip device can be added;

  • The whole table is patented, and the patent name “an anti-freezing water meter with frozen state detection” can improve the anti-icing performance within -8 °C;

    Through the frequency range of 470MHz~510MHz, LoRa wireless communication mode realizes real-time copying function. The transmission power is ≤50mw. The level 1 open communication distance between the concentrator and the water meter is about 1KM. By increasing the relay route, the farthest meter reading distance is about 5KM.

  • Battery voltage reading function: battery voltage data can be read every day through a remote meter reading platform

Detachable LoRa remote water meter

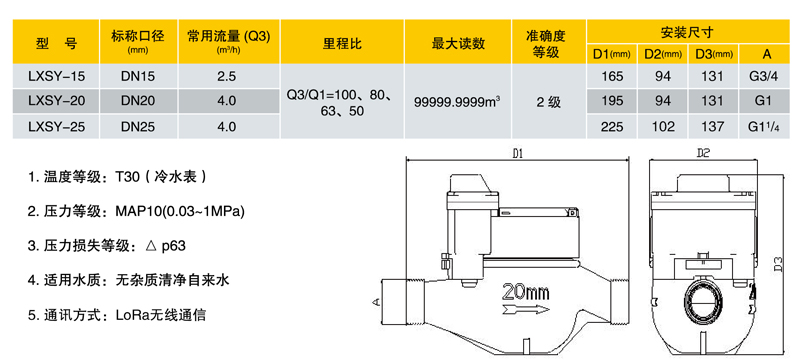

Parameters & installation
